Tilting TV/Display Wall Mount Bracket
Part Number: C43

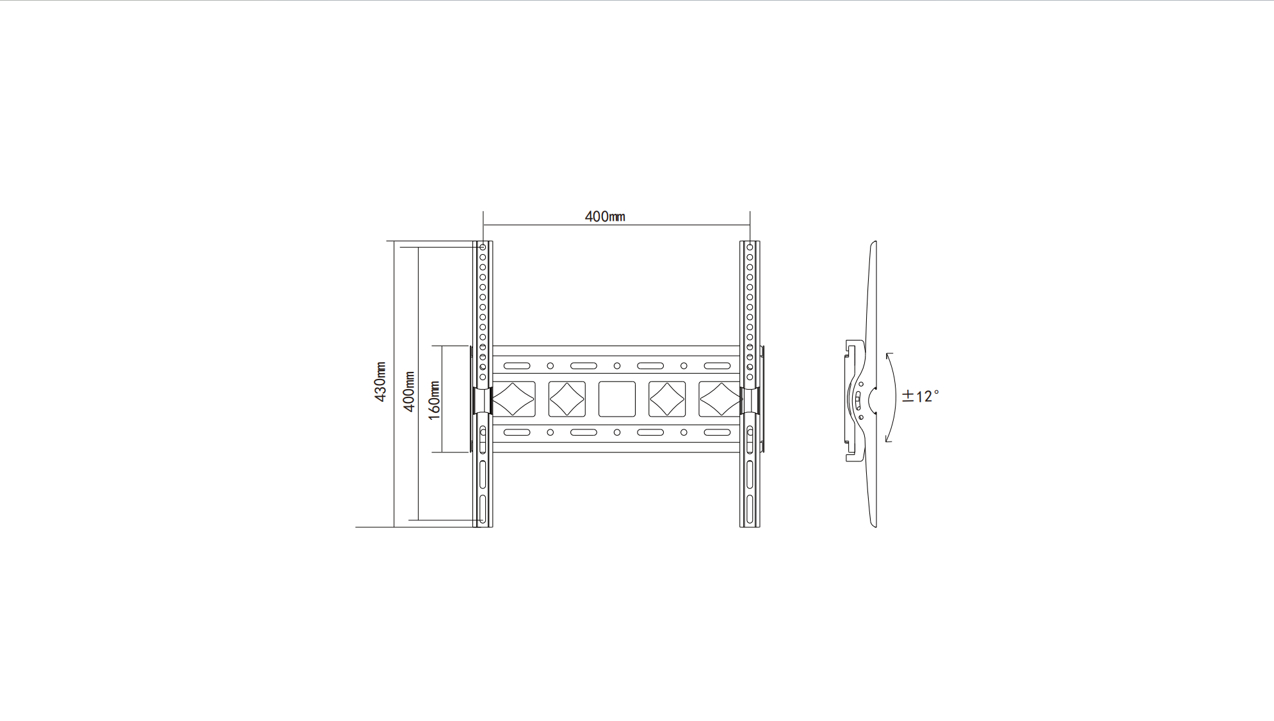

Disigned for 26"-65'' displays, 132 lbs capacity, 47.5 mm gap to wall, ±12° tilt
| Specifications | |
|---|---|
| Applicable Size | 26" - 65'' |
| Load Capacity | 60 kg(132 lbs) |
| Profile/Gap to wall | 47.5 mm(1.87'') |
| Tilt Adjustment | ±12° |
| Horizontal Adjustment | - |
| Horizontal Rotation Angle | - |
| VESA Compatible | 400 × 400mm(15.75'' × 15.75'') 100 × 100 mm(3.94'' × 3.94'') |
| Inner Box Dimensions | 460 × 165 × 40mm(18.11'' × 6.50'' × 1.57'') |
| Inner Box Gross Weight | 1.68 kg(3.70 lbs) |
| Outer Carton Dimensions | 470 × 435 × 185mm(18.50'' × 17.13'' × 7.28'') |
| Outer Carton Gross Weight | 17.64 kg(38.89 lbs) |
| QTY/CTN | 10 pcs |
